Manifold and geometric smooths

gamfit supports smooths whose predictor space is a manifold other than flat Euclidean space: a circle, a cylinder, a torus, a sphere, or a tensor product with periodic margins. Boundary-conditioned 1-D smooths (clamped and anchored) are also available. Reference for formula options is in the Formula DSL reference.

Demo: six geometric examples

The image below is the output of scripts/geometric_shapes_demo.py. For each shape, noisy 3-D points (x, y, z) are sampled along the manifold and one geometric smooth is fit per output coordinate:

gamfit.fit(df, "x ~ <geometric-smooth>(latent_params)")
gamfit.fit(df, "y ~ <geometric-smooth>(latent_params)")
gamfit.fit(df, "z ~ <geometric-smooth>(latent_params)")

Predicting all three coordinates on a dense grid in the latent space gives the reconstructed surface. Left panel of each pair: noisy observations. Right panel: the fitted surface.

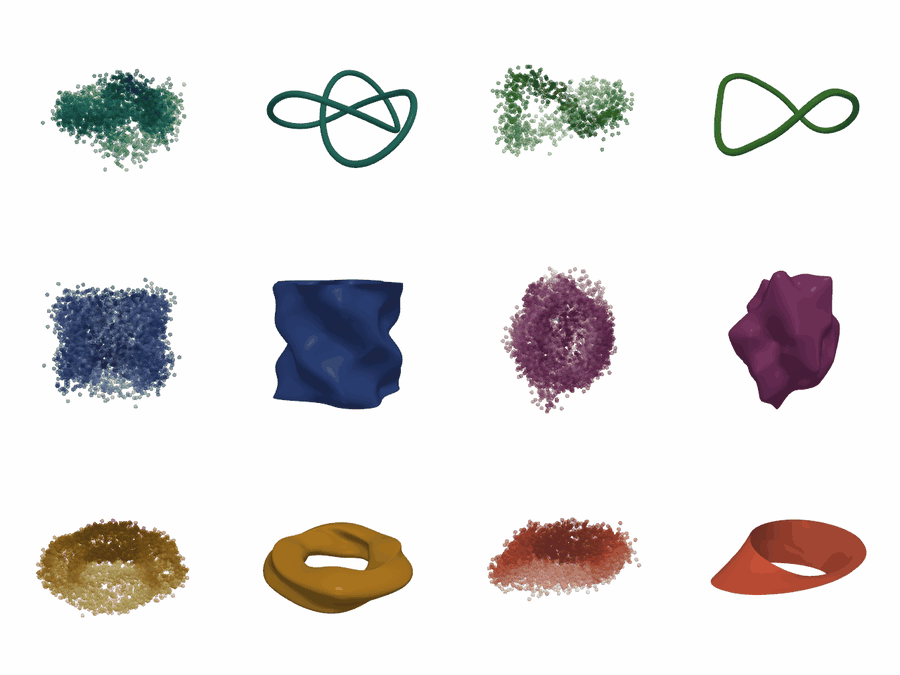

rotating-shape demo of six geometric smooths recovered from noisy 3-D point clouds

Slower MP4 (first half of the loop, 2/3 speed):

The script writes a full-length MP4 alongside the GIF and PNG. See reproduction recipe below.

Shapes and formulas

Shape Latent params Formula
Trefoil knot (closed curve in ℝ³) t ∈ [0, 2π) x ~ s(t, periodic=true, period=2*pi, k=24)
Latent-free loop (closed curve, t inferred from PCA + atan2) inferred t ∈ [0, 2π) x ~ s(t, periodic=true, period=2*pi, k=18)
Wobbly cylinder (one periodic axis, one open axis) θ ∈ [0, 2π), h ∈ [0, 1] x ~ te(theta, h, periodic=[0], period=[2*pi, None], k=[26,12])
Lumpy sphere (intrinsic S²) lat, lon (radians) x ~ sphere(lat, lon, radians=true, k=100)
Bumpy torus (two periodic axes) u, v ∈ [0, 2π) x ~ te(u, v, periodic=[0,1], period=[2*pi, 2*pi], k=[20,16])
Möbius embedding (4π double-cover) u ∈ [0, 4π), v ∈ [−0.8, 0.8] x ~ te(u, v, periodic=[0], period=[4*pi, None], k=[32,10])

The three coordinate fits per shape are independent: there is no shared parameter and no joint loss. Surface continuity at the seams is a consequence of the basis and penalty on the latent manifold.

Notes

  • Latent-free loop. When the latent parameter is not observed, the demo estimates t from the noisy points via the angle of the first two principal components. This is preprocessing, not a special API. The cyclic boundary removes the seam.
  • Sphere. The intrinsic sphere(lat, lon) smooth uses Wahba's reproducing kernel on S² (rotation-invariant, no pole artefacts). A spherical-harmonic alternative is available as method=harmonic, max_degree=L. Both are documented in the formula reference.
  • Möbius embedding (4π double-cover). The demo uses F(u, v) = ((1 + ½v cos(u/2)) cos u, (1 + ½v cos(u/2)) sin u, ½v sin(u/2)), which satisfies F(u+2π, v) = F(u, −v) and F(u+4π, v) = F(u, v). The smoother is given the latter, ordinary periodicity (period 4π in u), so the predictor manifold is the orientable cylinder S¹ × [−v, v]. The fitted surface in ℝ³ looks Möbius because the embedding is Möbius; the basis and penalty do not encode the twisted identification (u, v) ∼ (u+2π, −v). A true Möbius basis is not exposed by the formula DSL.

Why use a geometric smooth

te(theta, h) on a cylinder without periodic=[0] produces a visible seam at θ = 0. Same for a torus (two seams) or sphere (a longitude seam plus pole crowding). The geometric smooths build the wrap topology into both basis and penalty:

  • Predictions at θ = 0 and θ = 2π agree.
  • The penalty integrates the squared derivative around the loop, so the wiggliness budget is allocated correctly.
  • For the sphere, the kernel is isotropic and applies uniformly at the poles and the equator.

Reproducing the demo

cargo build --release
uv run --with numpy --with pyvista --with matplotlib \
       --with imageio --with imageio-ffmpeg --with pillow \
       python3 scripts/geometric_shapes_demo.py

The first run generates noisy CSVs under scripts/geometric_shapes_demo_data/, fits 18 small models via the gam CLI (about 15 s on a laptop), and writes PNG, MP4, and GIF outputs. Re-runs reuse the cache; --regen starts fresh, and --still / --mp4 / --gif selects a single output.

A smaller Python-only entry point (a tilted 3-D circle with a localized radial spike, fit via gamfit.fit directly) is in scripts/circle_3d_cyclic_demo.py.
